Plumber Mason Klingsick knows all about the importance of reliability – his modified Ford Focus ST Mk2 has 641bhp on tap, it’s hot on the gas and built to last.

Feature from Fast Ford magazine. Words: Graham Leigh. Photo: Jason Dodd.

A Suzuki Swift Sport doesn’t sound like the ideal starting point for a fast Ford fan, but for Suffolk-based Mason Klingsick, it was the first in a long line of motors he tried before finding his rightful place at Uncle Henry’s feet.

Quick to modify the Suzuki, Mason added a custom exhaust, semi-slicks and an induction kit. Since then, many cars have spent time on the Klingsick driveway, including a caged and tuned Audi TT and a sorted Subaru Impreza WRX.

Eventually, he saw the Blue Oval-shaped light and crossed the county line to Cambridgeshire to pick up this modified Ford Focus ST Mk2 in 2019.

driving shot of Modified Ford Focus ST Mk2

He says, “I’ve had loads of other cars, but I never really kept them for long – normally only for about five or six months. That was until I got the ST.”

Mason was initially unsure if he wanted to modify the Focus ST225, but liked the idea of an unabused blank canvas to avoid the all-too-familiar undoing of somebody else’s handiwork. So an RW Developments 3.5in turbo-back exhaust system was the first mod, which helped with breathing and made the gorgeous five-cylinder burble more audible.

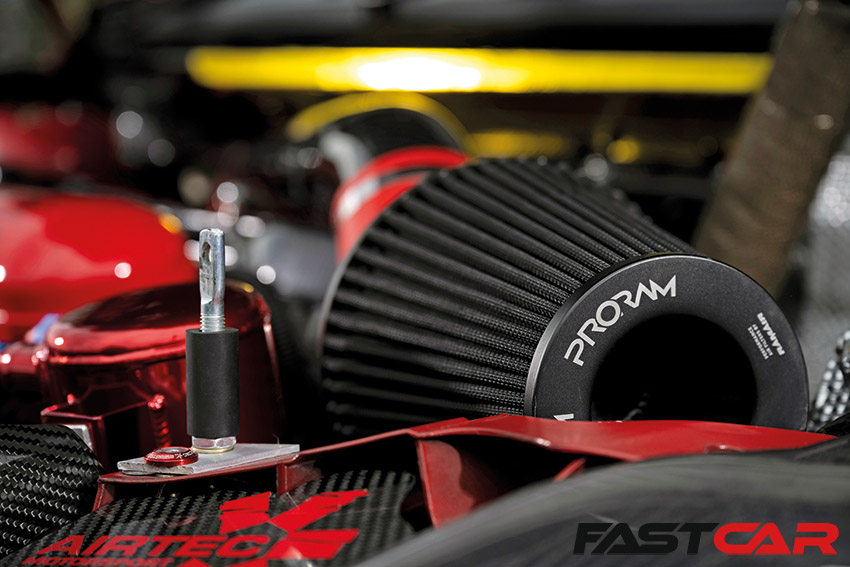

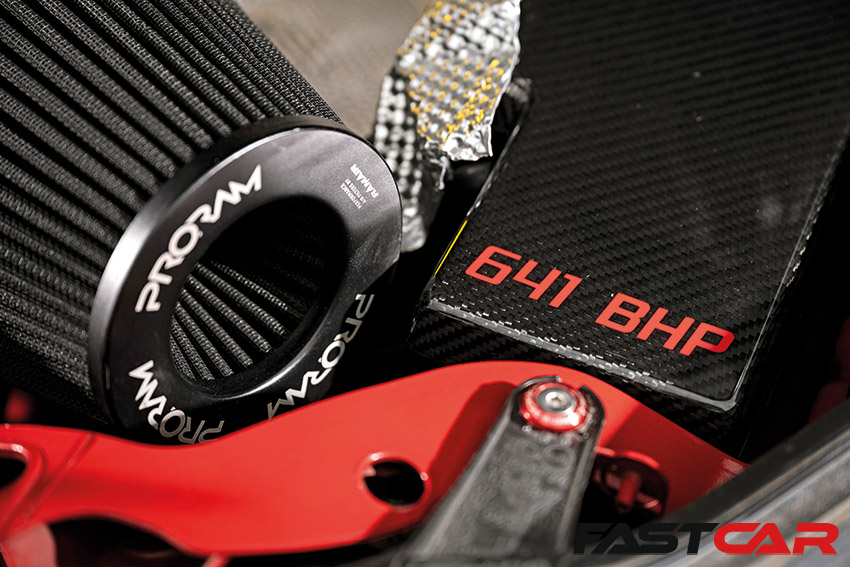

A Stage 1 remap and induction kit with Proram filter followed. We all know how these projects can snowball, and before long the decision was made to go all out and have a forged motor built. But why a modified Ford Focus ST Mk2?

Engine build on Modified Ford Focus ST Mk2

Mason explains, “I saw there was an opportunity to do something different and build a top-flight ST, as most of the big-power builds use an RS as the starting point.”

Matt Lewis Motorsport was entrusted with the comprehensive build. A linered block was selected to ease the worries of cracks; the build added Mahle Motorsport pistons and big end bearings, K1 H-beam rods, King Race main bearings and a polished crank. The head was reconditioned and fitted with Stage 1 Newman cams, chosen for the accessible power band of 1500-to-6000rpm.

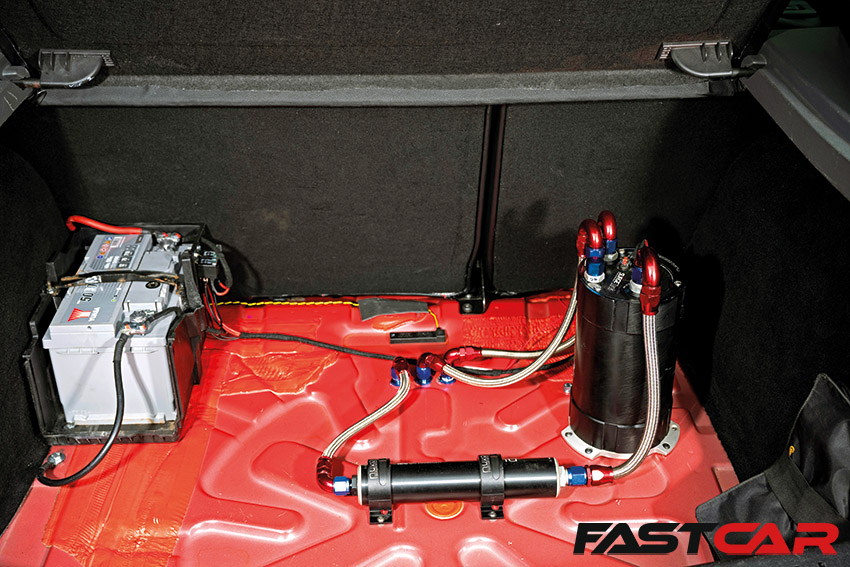

Boot in Modified Ford Focus ST Mk2

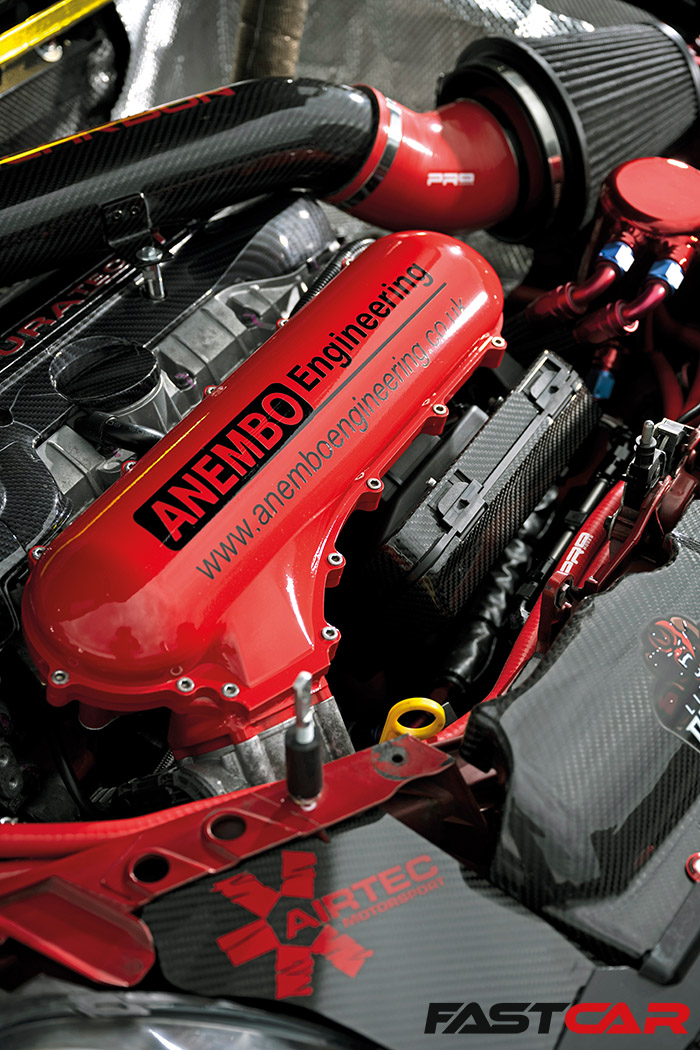

A Nuke Performance fuel system with surge tank and modified fuel rail feed 1000cc injectors. A dual ceramic ball bearing Garrett GTX3582R Gen 2 turbo is paired with a Tubosmart 50mm wastegate. An Anembo enlarged throttle body and plenum are a tried-and-tested duo, while the Matt Lewis Motorsport and Spec-R collaboration breather system and Mishimoto oil cooler ensure lubrication temperatures stay safe.

The welded top of the Spec-R oil filter housing eliminates the leakage problem that the plastic originals often suffer.  An air-con delete was required to install a substantial Airtec Gobstopper intercooler. Elsewhere, the Airtec catalogue was hit up for a gearbox torque mount, header tank and power steering tank.

NOS in Modified Ford Focus ST Mk2

Mason reports that the most challenging part of the build was getting the screamer pipe to fit. Dean at RW Developments came up trumps with his superb fabrication work, and modified the Nortech tubular manifold to allow the screamer pipe to exit via the bonnet. No mean feat, as it manages to start at the back of the engine, avoid water pipes and the strut brace, and exit adjacent to the centre of the head. Seeing flames shoot into the night sky when the car is pushing on reportedly never gets old.

While the car was dismantled, it was a good opportunity to have the gearbox reconditioned. Mason says, “I chose a Wavetrac LSD as opposed to a Quaife, as I was keen not to default to RS parts where I could.”

screamer pipe on Modified Ford Focus ST Mk2

Also helping the front wheels gain some traction is the Syvecs S6 Plus ECU. As well as the obvious stand-alone mapping benefits, this system features anti-lag, launch control and torque biasing traction control. It’s used with a Syvecs Fuel Flex sensor that closely monitors fuel content and quality and relays the info to the management system. Again, this setup is as much about belt-and-braces safety as it is pure performance. Powerflex mounts were used for the upper engine, gearbox and exhaust.

While a 641bhp rolling road figure is not for the faint-hearted, Mason hopes to break the 700 barrier with a sidewinder turbo setup in future. Elsewhere, he intends to swap the Stance+ coilovers for a BC Racing kit. A K-Sport big brake kit is also on the cards, as although the modified Ford Focus ST Mk2 is running uprated discs and pads, the monumental power increase is working them a little too hard.

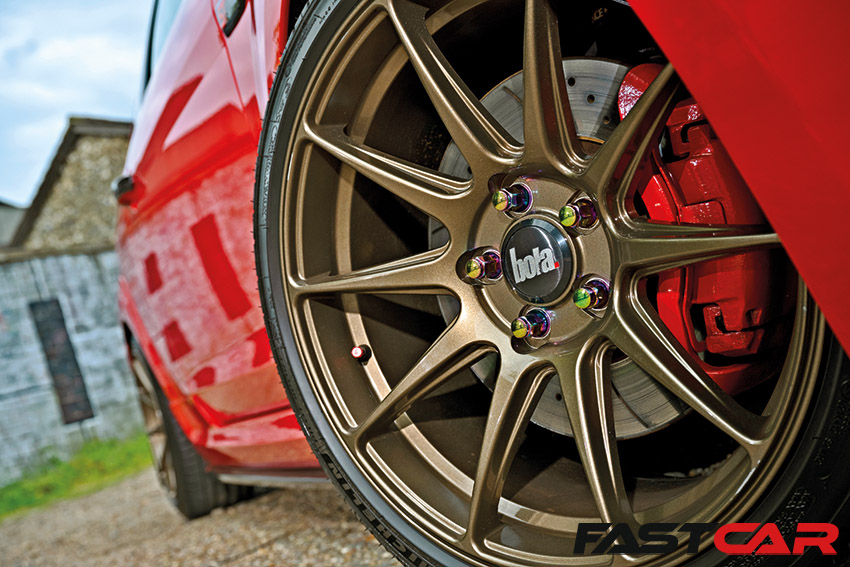

Bola wheels on Modified Ford Focus ST Mk2

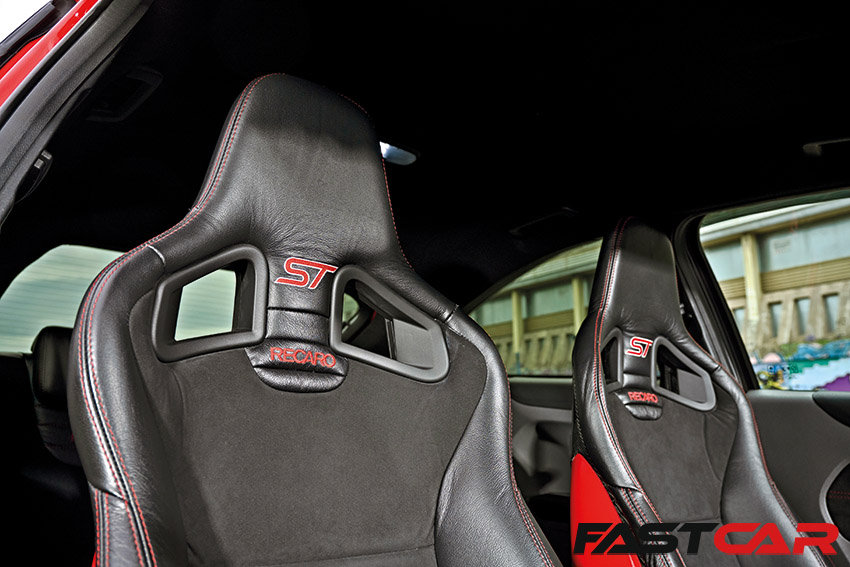

Many well-thought-out feature cars follow a theme throughout the build, and Mason’s is no exception. Although an RS Focus liberated its Recaro interior, Mason wanted to sing his ST song loud and proud, and thus had the Recaros reupholstered in leather and Alcantara with red ST embroidery. Red stitching further ties in the exterior.

On the outside, carbon fibre punctuates the Colorado Red, continuing the colour scheme except for bronze Bola B15 18in wheels; Michelin Pilot Sport 4 tyres inspire confidence.

Interior shot of Modified Ford Focus ST Mk2

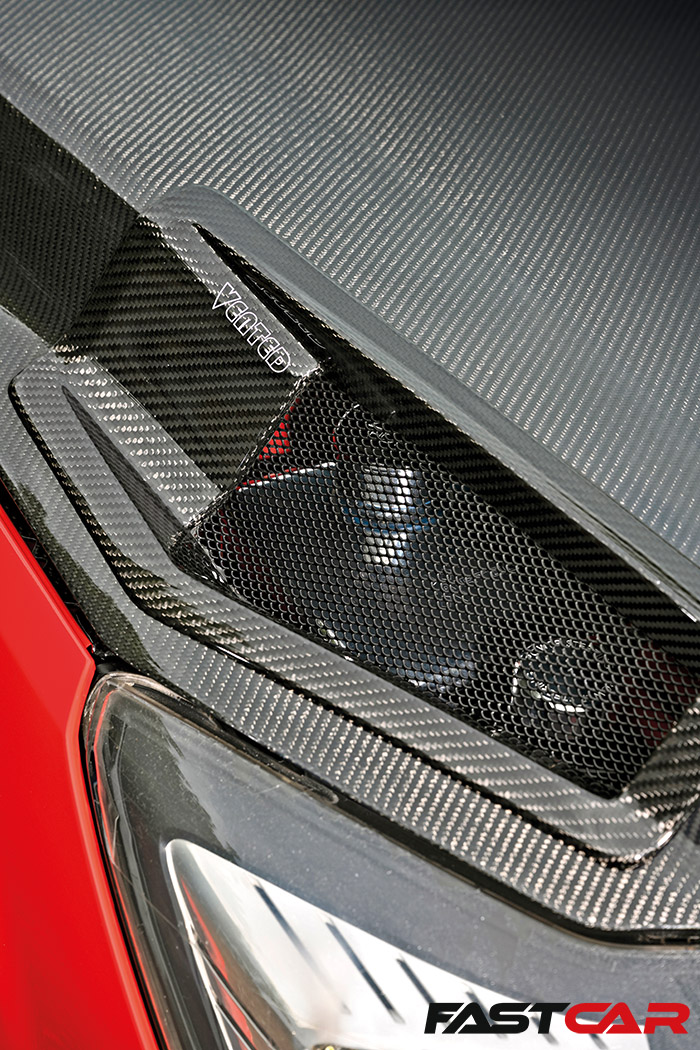

Mason was keen to enhance the car’s looks while retaining the ST flavour. A Maxton lowline bodykit, spoiler extension and rear diffuser fit the bill perfectly, while rally-style mud flaps and WRC-style bonnet vents give a good clue that Mason is a self-confessed WRC fan.

A Zunsport grille set modernises the front end a treat with its fine, neater-looking mesh. The red colour-coded Airtec script on the intercooler gives a clue to the car’s intentions.

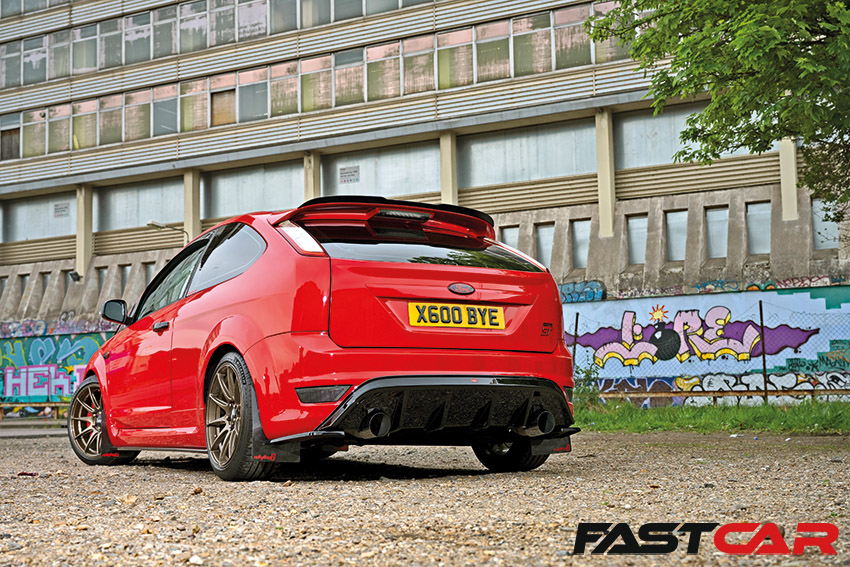

Rear shot of Modified Ford Focus ST Mk2

Mason has created what must be one of the best STs in the country, and with his plans for the future, there is still more to come.

So despite his Swift start, we’re pleased Mason swapped to fast Fords. And with his attention to detail and robust approach to tuning, we’re sure we’ll be seeing this car about for years to come. Strong stuff.

Tech Spec: Modified Ford Focus ST Mk2


2522cc linered block, Mahle Motorsport pistons 8.5:1, K1 H-beam rods, Mahle Motorsport big end bearings, King Racing main bearings, reconditioned head with Stage 1 Newman cams, polished crank, 1000cc injectors, Matt Lewis Motorsport Spec-R breather system and fittings, Matt Lewis Motorsport Mishimoto oil cooler system in gold, Ford oil pump, Ford cambelt kit and water pump, Ford/Victor Reinz complete engine gasket set, modified Nortec tubular manifold and screamer pipe, Garrett GTX3582R Gen 2 turbo, Turbosmart 50mm wastegate, Nuke Performance fuel system with surge tank and Matt Lewis Motorsport custom modified fuel rail, Mishimoto heat shielding, Powerflex upper engine and upper gearbox mounts, Powerflex exhaust mounts, Airtec torque mount, Airtec header tank, Airtec power steering tank, Airtec Gobstopper intercooler, Anembo 70mm throttle body, Anembo inlet plenum, air-con delete kit with powder-coated red bracket, RW Developments 3.5in custom turbo-back exhaust system, Syvecs S6 Plus ECU with Toucan display, Syvecs induction kit with Proram filter, Syvecs Fuel Flex system




Rebuilt original ST M66 six-speed gearbox with Wavetrac LSD


Stance+ coilovers all round


Front: Focus ST ventilated 320mm discs and single-piston callipers, with uprated discs and pads; rear: Focus ST 280mm discs and callipers, with uprated discs and pads

Wheels & Tyres:

8.5x18in Bola B15 alloy wheels in bronze, 5×108 PCD, ET40 with 225/40/18 Michelin Pilot Sport 4 tyres


Maxton Design lowline kit, Maxton Design spoiler extension and rear diffuser, carbon fibre Rally Flapz mud flaps, carbon fibre front and rear badges, carbon fibre side badges, carbon fibre door handles, carbon fibre mirrors, carbon fibre bonnet with WRC-style vents, carbon fibre headlight washer covers, Zunsport grille set, custom gel plates, carbon fibre stubby aerial, Team Heko wind defectors

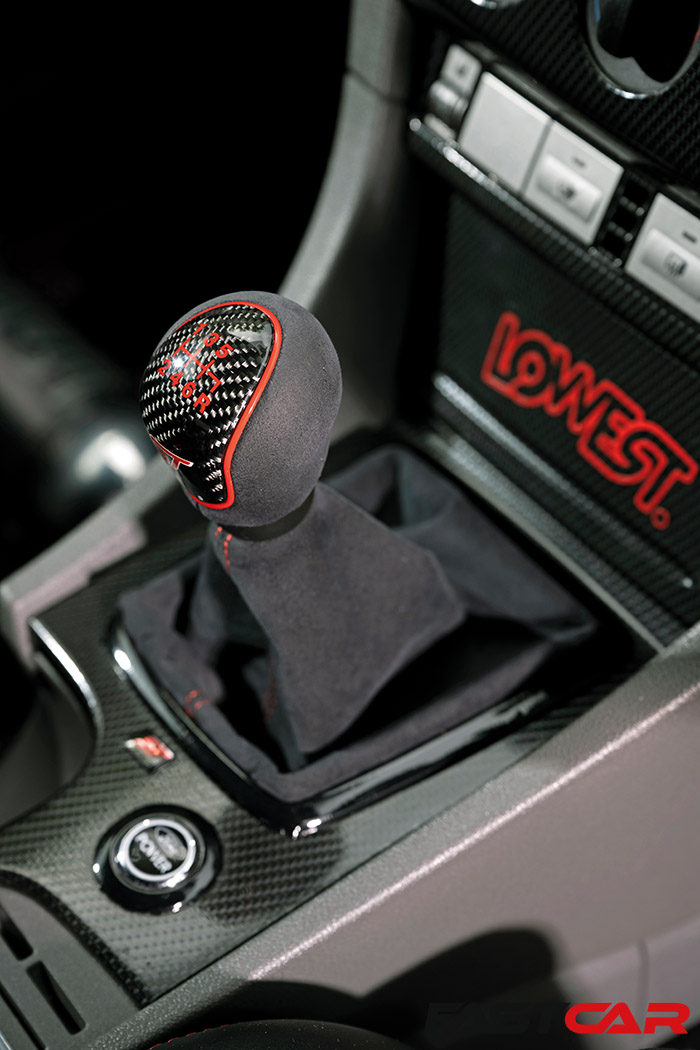

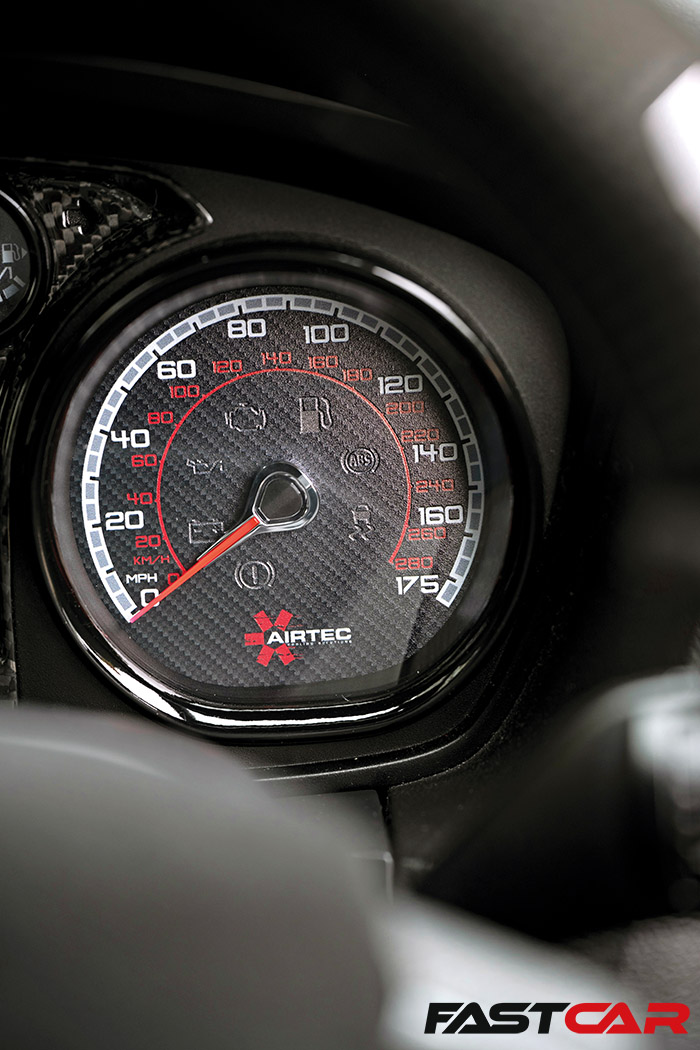

Full RS interior reupholstered in black leather and Alcantara with red stitching and red ST embroidery, carbon fibre sunglasses holder, carbon fibre custom steering wheel, carbon fibre custom gearknob by SS Tuning, carbon fibre handbrake handle, carbon fibre air vents, carbon fibre seat backs, carbon fibre centred clocks, custom speedo and rev gauge, Alcantara top boost pod cover, custom leather and Alcantara parcel shelf, Alcantara door card inserts, leather and Alcantara armrest, Toucan display in air vent, fuel system and battery relocated to boot
