In today’s tour of the archives, we take a look back at Andy Boyle’s tastefully tuned Honda Civic Type R EK9 – a car we first met back in 2014…

Words: Mark Riccioni, Photography: Dan Pullen.

Ask most die-hard Civic fans what the best Type R model is, and they’ll tell you the same thing – the JDM-only EK9. This was the first Civic ever to wear that elusive red badge and even by today’s standards it packs a mighty punch – 186bhp from a 1.6-litre N/A screamer, LSD-equipped gearbox and a chassis weighing just 1090kg! It’s the epitome of a Type R model: track-ready performance with all the refinement of a daily road car.

Take all of this into consideration and you’ve got to ask yourself the following: why modify something so good? It’s over 15 years old and EK9 upgrades are still a must for EK owners, from the brakes and bumpers right through to those figure-hugging Recaros. It takes a brave owner to try and make the EK9 even better, especially when keeping to Honda’s original ethos. Go too far and you’ve built a track car. Choose form over function and you lose the point of the EK9 altogether.

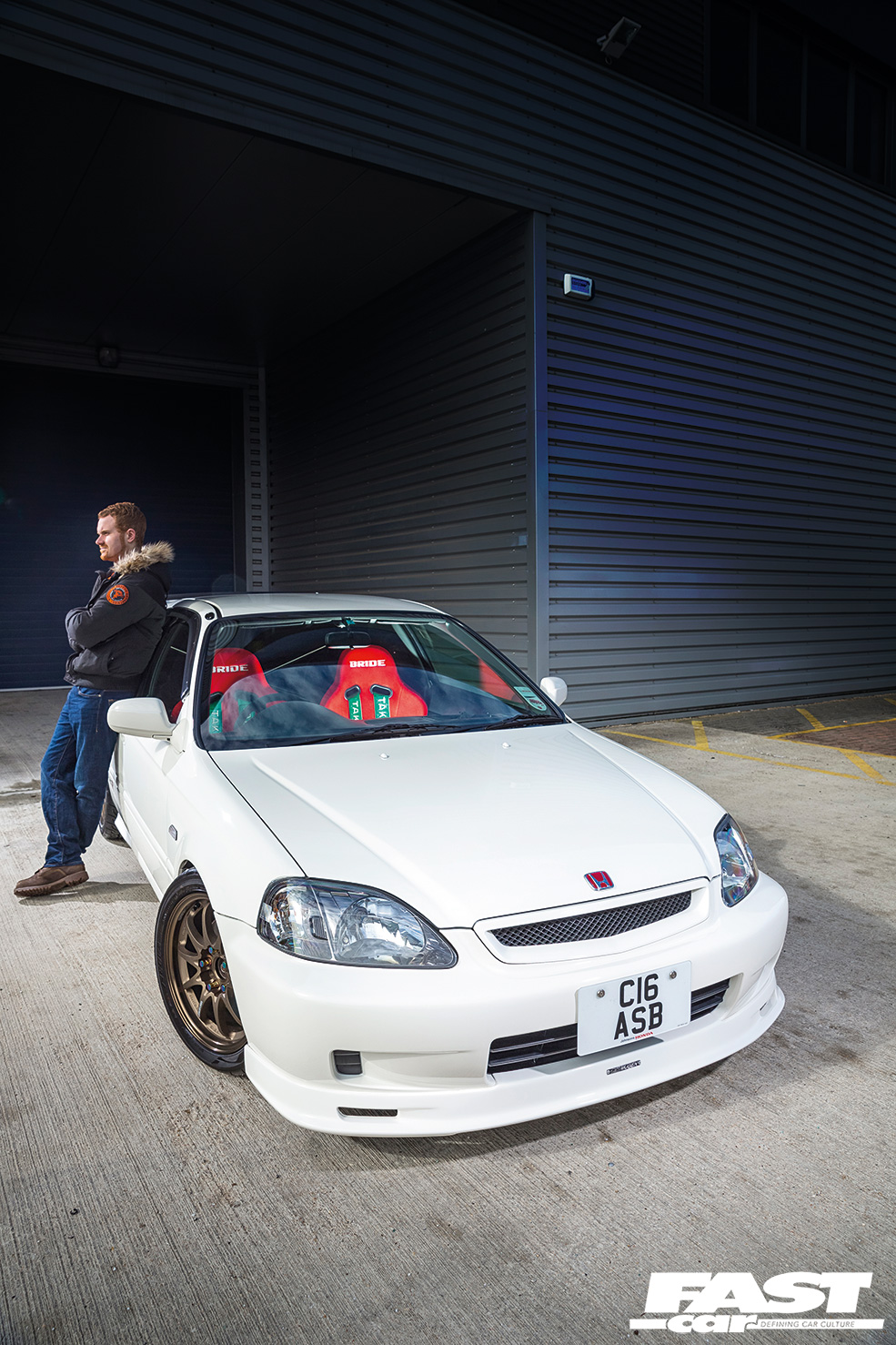

One man embracing this challenge is Andy Boyle, and it’s safe to say he’s showing some promising credentials. For a start, Andy’s always owned Hondas – he’s a member of multiple forums including and he’s researched just about everything you need to know. Secondly, Andy’s worked for Oxford’s Johnson’s Honda since 2006, now specialising in their parts department! So, chances are he’s not about to fit an electronic supercharger to his engine’s intake…

HONDA CIVIC EK9 TYPE R Championship White

“I’ve always wanted an EK9. In fact, we’ve always sold loads of EK9 upgrades at Honda,” says Andy. “The advantage of the EK9 compared to other Hondas is that it’s lighter from the factory with no sun roof, rear wiper, or sound proofing. It features a shorter steering rack and limited-slip differential as standard – not forgetting the powerful B16B motor. It’s in another league compared to say the EK4.”

But power wasn’t the reason for Andy’s purchase. In fact, prior to the EK9 he owned a twin-turbo R33 GT-R packing more than enough horsepower to see off just about anything on the road. Unfortunately the R33 GT-R ended up being a write-off, and while waiting to find a replacement Andy decided to scratch that EK9 itch until another Skyline came up. Needless to say, Andy never bought another GT-R, and the EK9 soon became his number one priority!

“You can’t compare the two cars, but honestly even in standard trim the EK9 is so much more fun,” Andy adds. “You can throw the car around and hear the engine use every last RPM. It’s addictive, nothing else comes close to it.”

HONDA CIVIC EK9 TYPE R Championship White

But modifying an EK9 isn’t something you guess at. Perfected by Honda to give the best balance and handling, it’s all too easy to spend money thinking you’re making it better, when in reality it’s just a damn-good car to begin with.

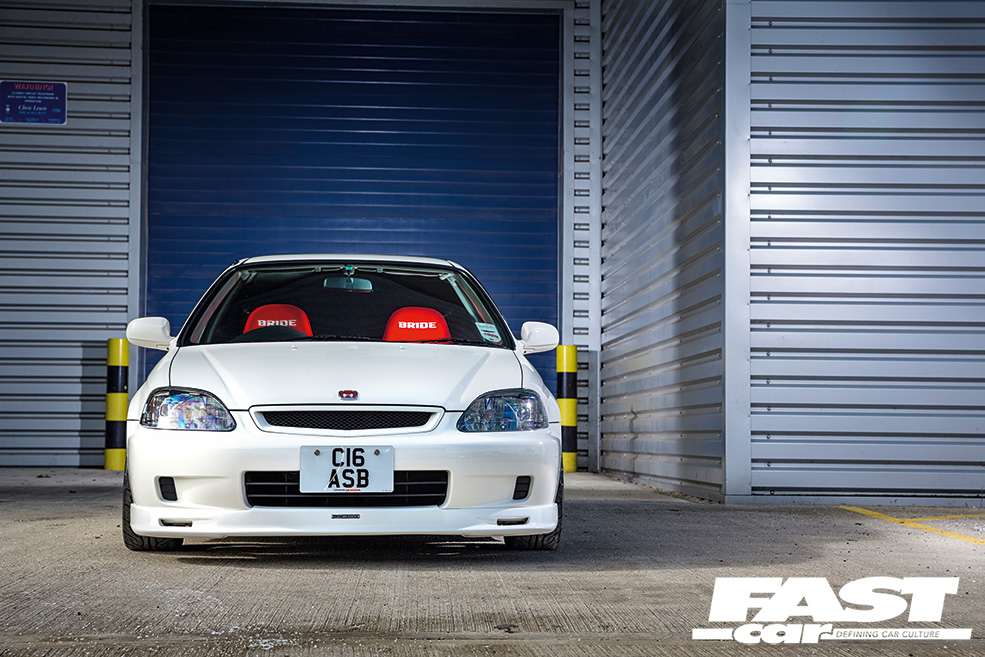

This is where Andy’s knowledge and experience came into play, researching the benefits of specific upgrades and creating a list of must-have parts to buy. What’s more, Andy also had a team of Honda Master Technicians on standby to offer advice and help with any new parts being fitted or rebuilt. “I wanted to make sure that every modification added something to the car – horsepower, handling or reliability,” he explains. “It’s hard to pick a favourite modification, but let’s just say the front Mugen lip is, to my knowledge, the only genuine one in the whole of Europe!”

Using as a resource to see what other owners recommended, Andy made sure his Civic not only performed better but also stood out from the crowd. The spec list is a JDM wet dream – Bride Zero III bucket seats on Buddy Club rails to sit lower to the ground, Spoon Sports brakes for improved stopping and super-lightweight Rays Engineering CE28Ns for reduced upsprung weight over stock. That’s not even taking the engine into consideration, where Andy’s done a bit more than just bolt-on mods…

HONDA CIVIC EK9 TYPE R Championship White


“I decided to swap over to a B18C engine purely because the B18 gives you better mid-range power and overall better torque without losing the revvy nature of a Type R engine.” He continues, “In addition to this, I swapped the gearbox to a DC2 Integra one as it features a bigger diff and 4.7 final drive to get through the gears quicker without losing top-end speed thanks to a tall 4th and 5th gear. It’s an easy swap to do as the original B16B is basically a de-stroked B18 so there’s no real weight gain,” he adds.

Utilising upgrades including an AEM V2 intake, Skunk2 Pro Series inlet manifold and Buddy Club exhaust, Andy’s EK9 puts out a healthy 202bhp and 146lb/ft of torque, backed up on the rolling road at Eurospec in Guildford. It may ‘only’ be an extra 16bhp over stock, but the extra torque and improved chassis means that the EK9 driving experience is completely transformed for the better. Mission complete, right?

“I don’t think a car is ever finished!” laughs Andy. “There’s always room for improvement. My next step is to get it poly bushed and fully undersealed as the EK9 doesn’t come with any. I’d love more power, but that leaves me with two options – swap to a K20 from the JDM DC5 or supercharge it with a low-compression B18 engine. Both will require a LOT of work, and I’m yet to decide which route to go.”

Rest assured though, whatever route Andy decides to take, you know he’ll do it properly.

Fancy building your own tuned Honda Civic Type R EK9? Then feel free to have a read of our buying and tuning guides.

TECH SPEC: Tuned Honda Civic Type R EK9

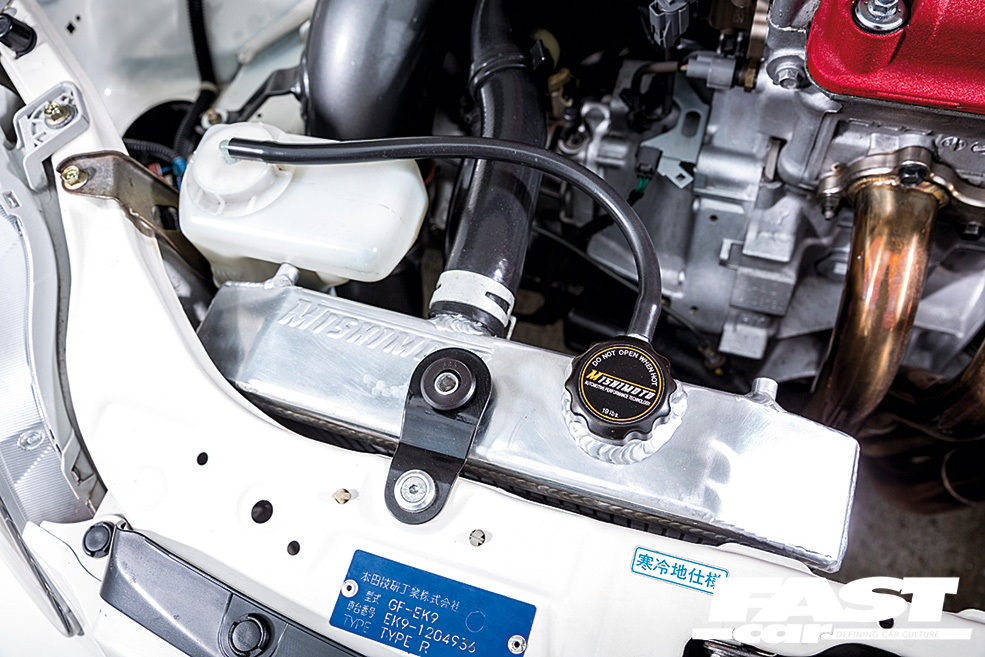

JDM ’98-spec B18C engine & transmission, AEM V2 intake, Skunk2 Pro Series inlet manifold, Hondata inlet gasket, Skunk2 Megapower exhaust manifold, Hond-R adjustable decat, Buddy Club Pro Spec exhaust, NRG carbon plug cover, Magnecore 8.5mm HT leads Competition Clutch stage 2 carbon Kevlar clutch, Competition Clutch chromoly light (5.5kg) flywheel, Skunk2 magnetic drain plug set, billet Innovative engine mounts 75A, Skunk2 VTEC solenoid cover, Skunk2 cam pulleys, Mishimoto X-Line, aluminium radiator, Skunk2 hard anodized billet VTEC solenoid, tuned and rolling roaded at Eurospec 202bhp, 149lb/ft

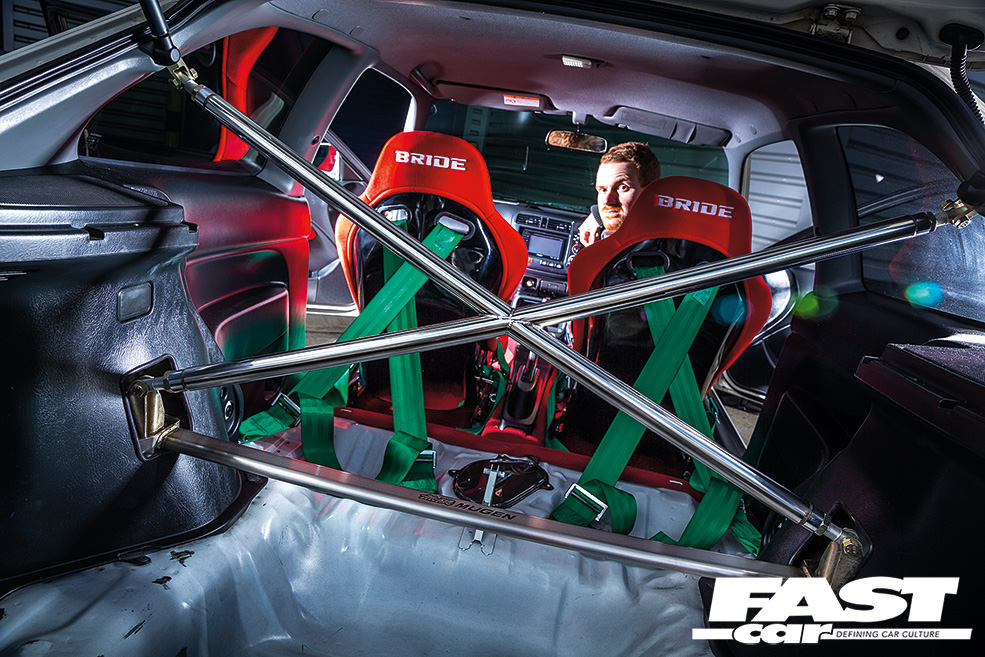

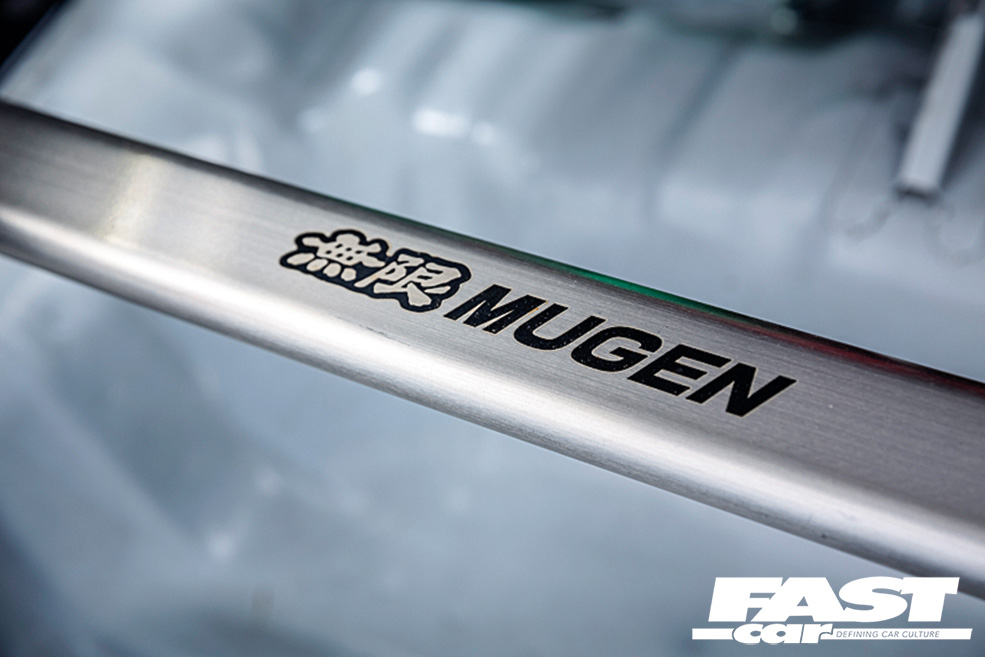

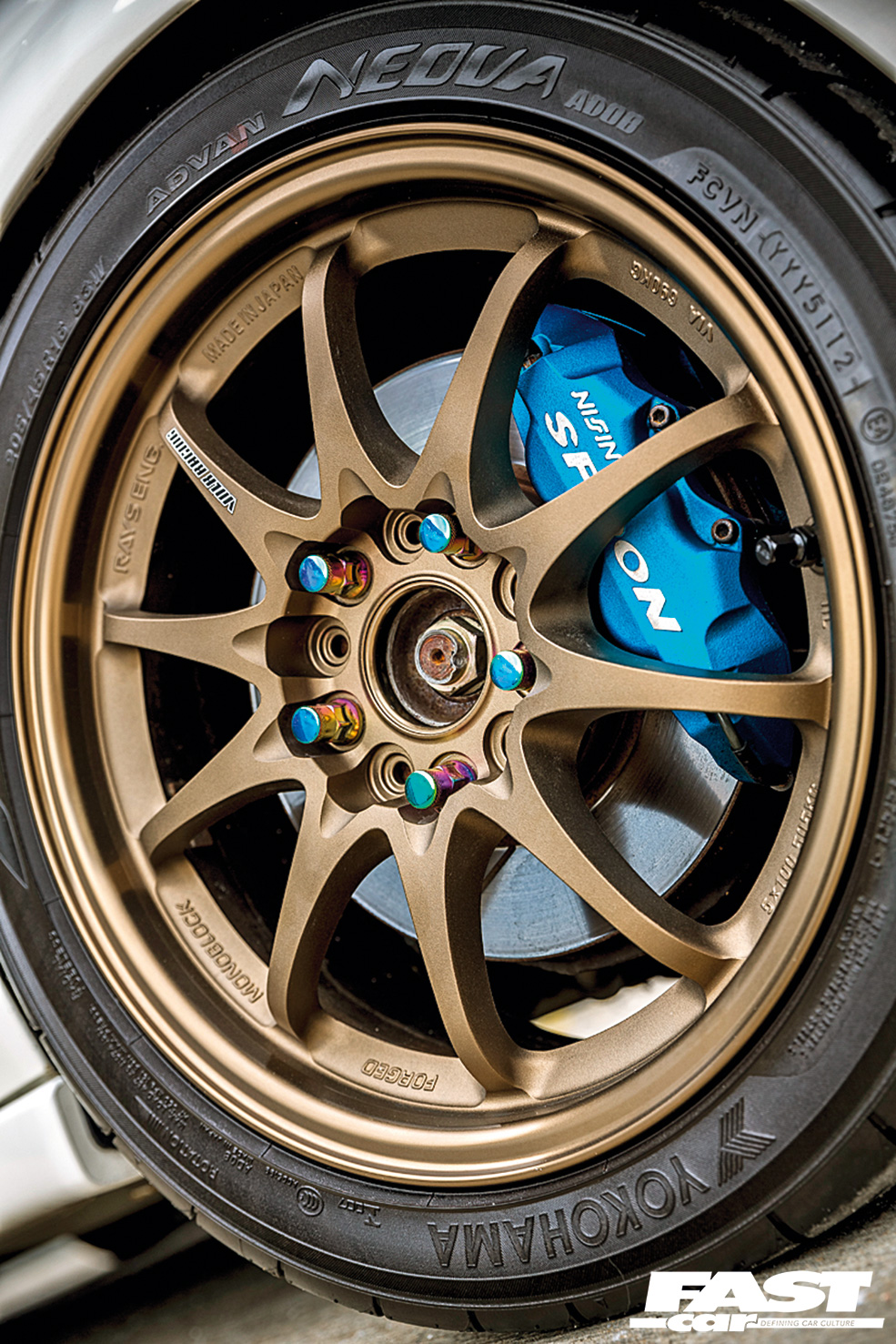

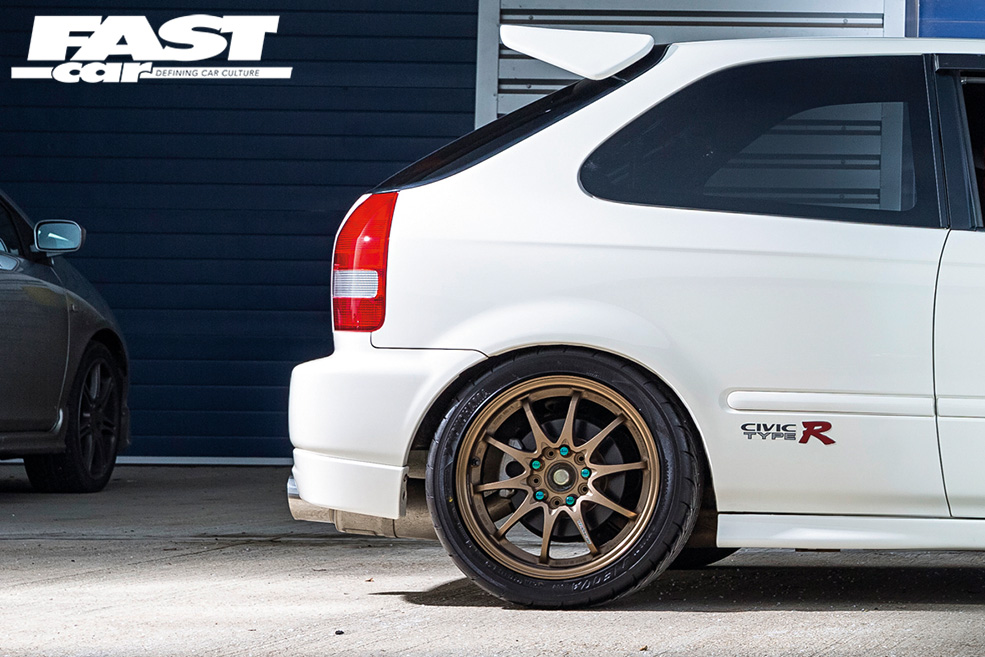

Rays Engineering Volk CE28N 7×16 in bronze, Yokohama Advan AD08 tyres 205/45R16W, Muteki Neon chrome wheel nuts, Spoon twin-block front brake calipers, Spoon front discs, Ferodo DS2500 brake pads, Spoon reservoir covers, Hel brake lines, Tein Mono Flex coilovers, Skunk2 rear lower control arms, Mugen front strut brace, Mugen rear strut brace, X brace

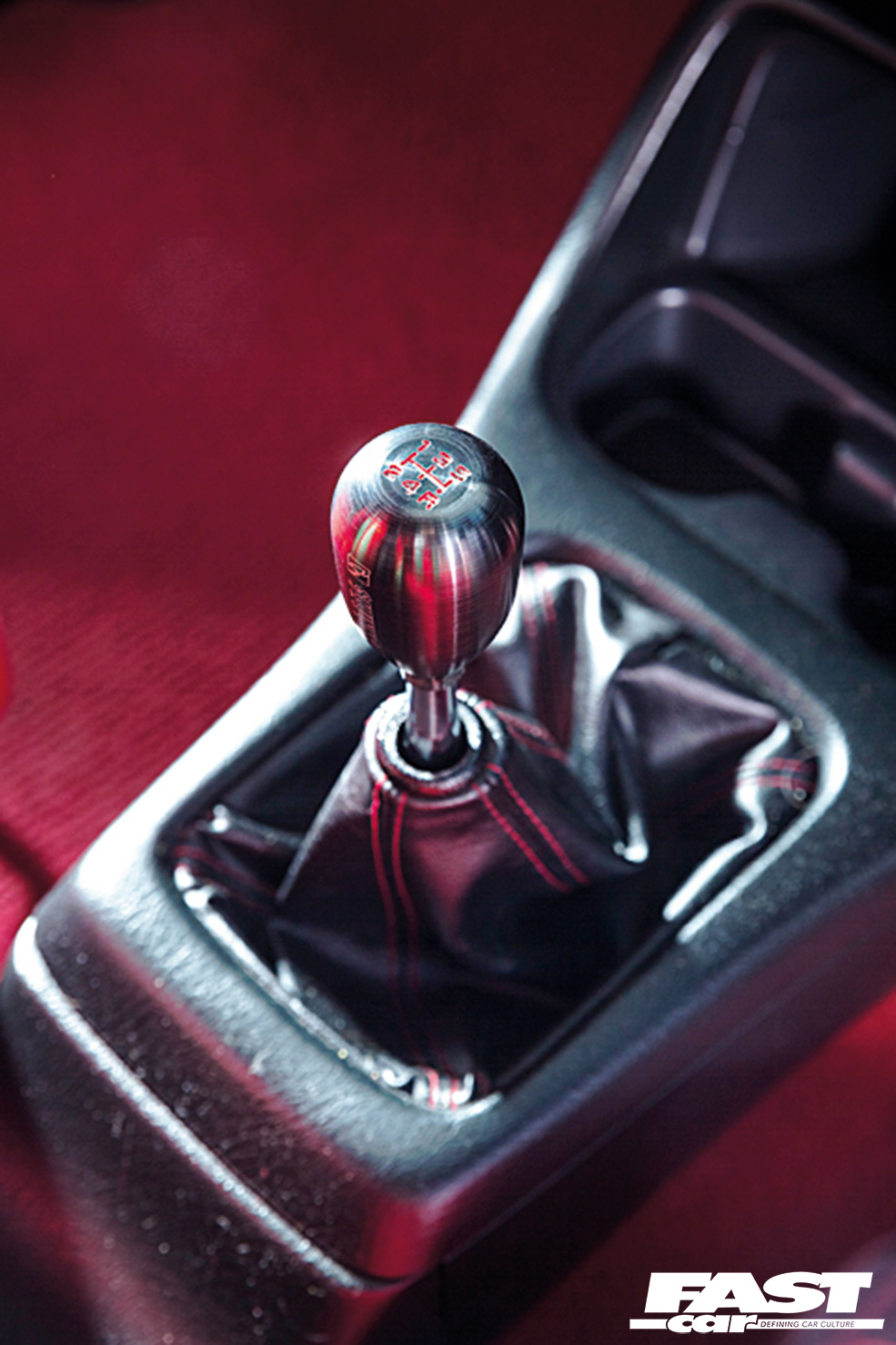

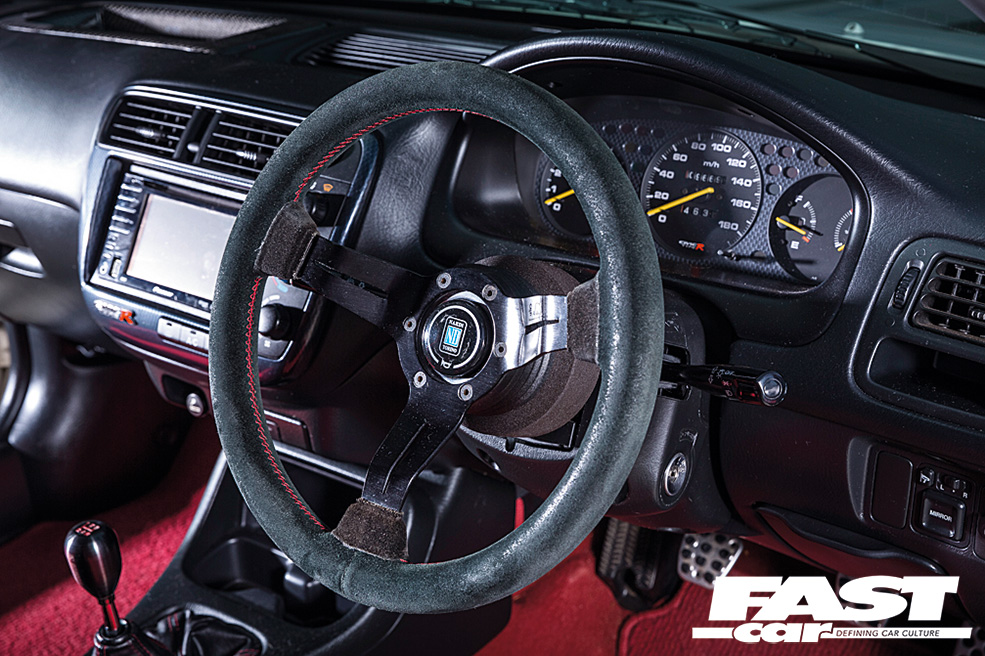

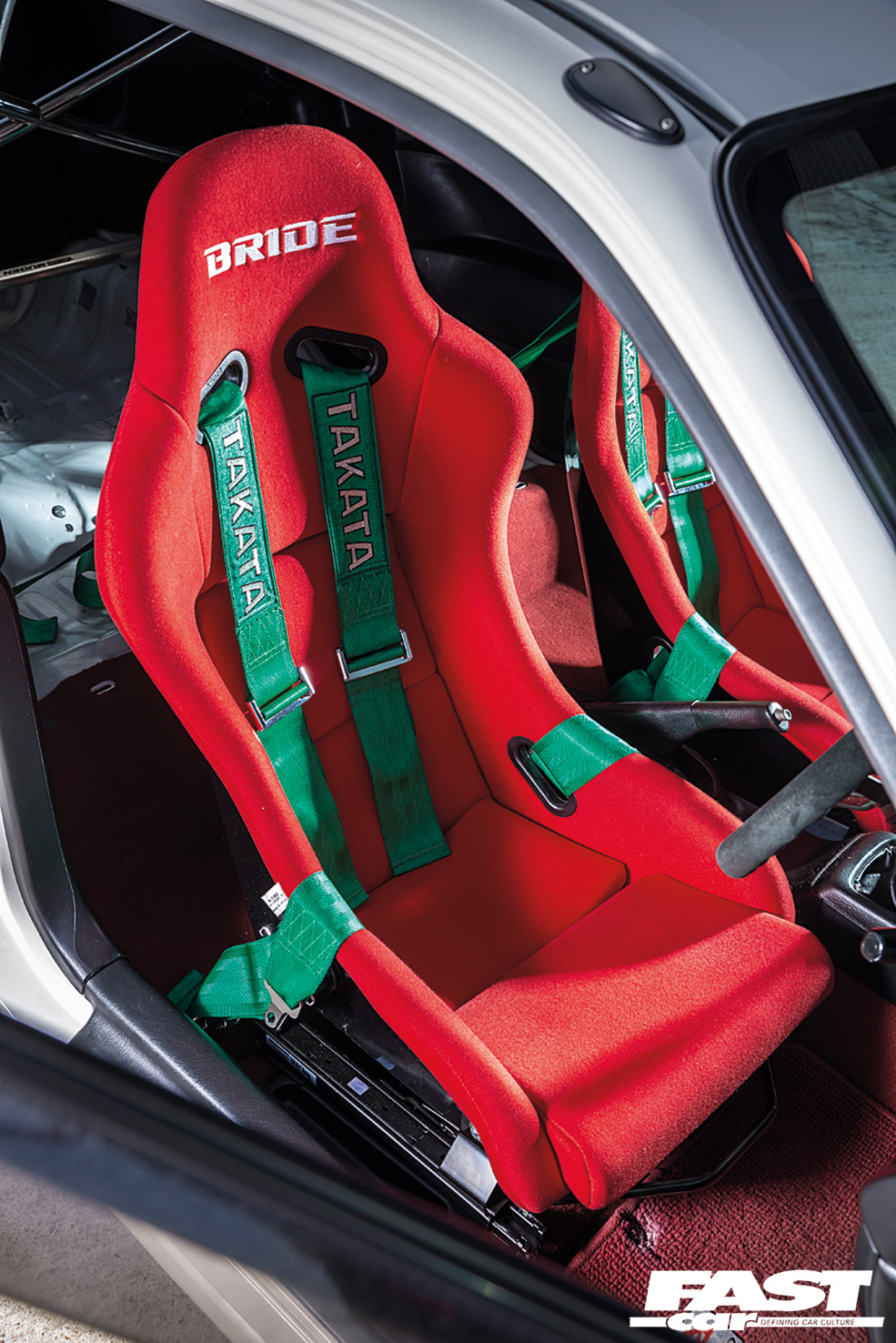

Bride Zeta III seats, Buddyclub seat rails, Takata MPH harnesses, Nardi steering wheel, carbon fuel pump cover, Skunk2 gear knob, Teishi carbon airbag delete, rear seats and airbags removed

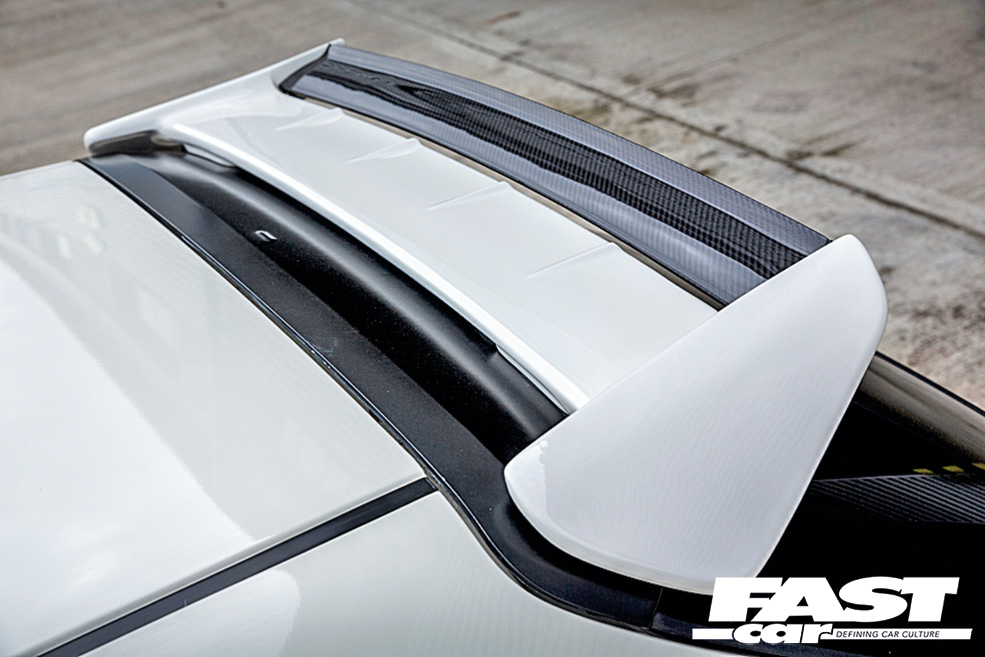

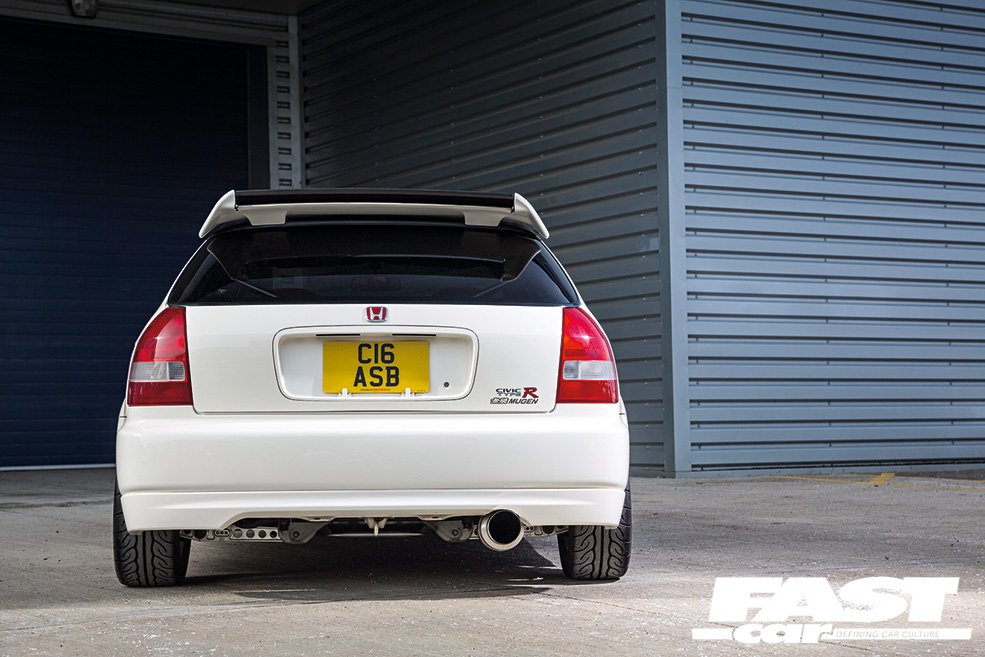

Mugen Type SS front lip, Seeker V2 spoiler, HR-V clear side repeaters, Mugen number plate bolts, OEM EK9 race base aerial blank plate, Tein bonnet dampers

I would like to thank Maz and Russell at Hond-R, Nigel, Stuart and Scott at Johnson’s Honda for the help with my engine and my amazing girlfriend Megan for putting up with it all!
