If you’re thinking of modifying your Spanish hot hatch – and we know you are – here’s our comprehensive Seat Leon Cupra Mk3 tuning guide.

Since Seat is part of the Volkswagen group, there’s no shortage of mod options when it comes to the Leon Cupra. Several parts are shared with other models across Audi, Skoda and Volkswagen so there’s a good range of tuning opportunities that apply to the Mk3. If anything, you’ll have to fight off other mod-happy owners but this also means there’s plenty of tuning specialists out there for the bits that are too difficult to do at home.

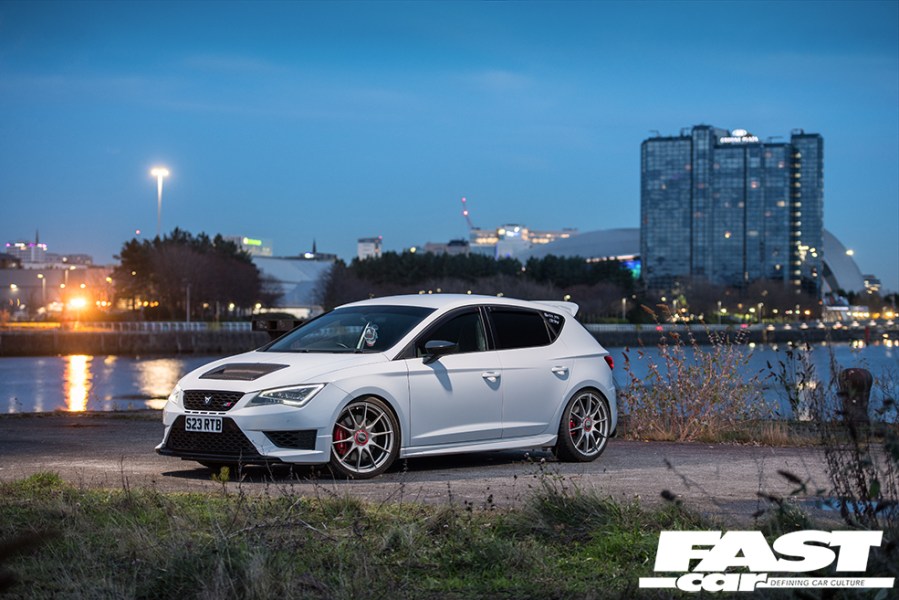

Tuned SEAT Leon Cupra

Engine tuning

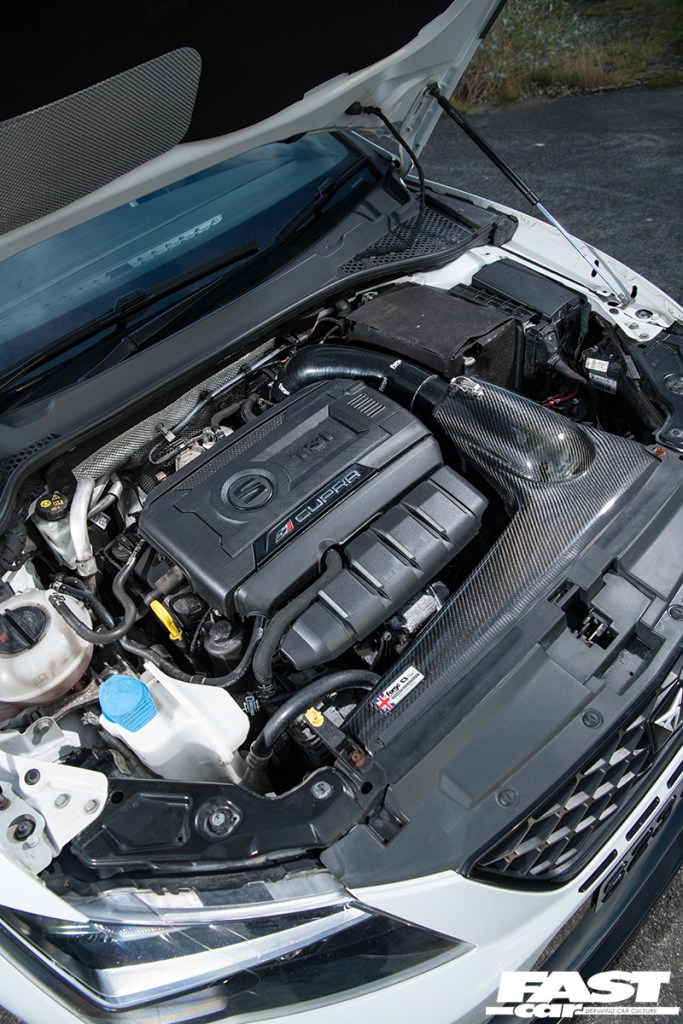

All Mk3s were equipped with the 2.0-liter TSI EA888 engine. Depending on which version you go for it’ll either have 261, 276, 286 or 296bhp as stock. Go for the Cupra R and it’ll deliver 306bhp with no tweaks. Obviously, tuning an engine isn’t as straightforward as getting it remapped although that does a lot of the heavy lifting. Supporting components need upgrading to maximize performance so sufficient air intake and adequate cooling is a must, otherwise you can kiss goodbye to your spicy new bhp stats when the engine overheats within five minutes. Also, using premium fuel will help to improve performance and keep the internals in good shape.

A Stage 1 remap can achieve up to 365bhp and a Stage 2 gets you in the region of 400bhp. If you’re super ambitious, a Stage 3 remap will bring power up to between 460 to 520bhp at the top end. There’s a lot of garages that specialize in this era of Volkswagen Group cars so make sure to do your research beforehand to find the right place for you and your car. We love a good recommendation too so if any of your mates have had similar work done ask them where they went and how it turned out.

Unless you want to, Stage 1 won’t require any additional mods to get it working as it should. At Stage 2 we’re looking at a turbo back exhaust, uprated air intake and a new intercooler. Stage 3 will require all of that and a better fuel pump to make the most out of it. There’s plenty of carbon fiber intakes available so if you’re going for a carbon theme it can definitely start in the engine bay.

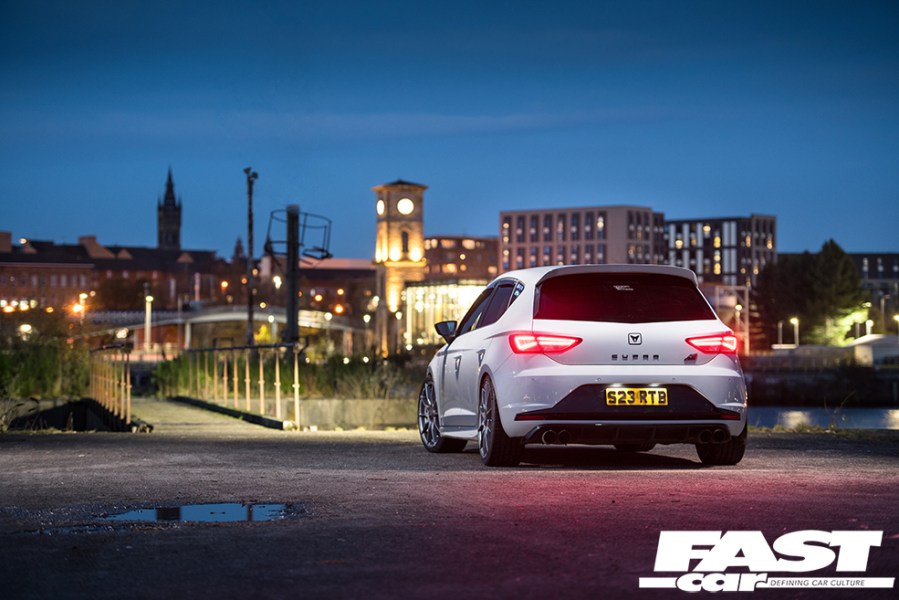

Leon Cupra driving through tunnel

Transmission tuning

The automatic DSG gearbox is the most common transmission in the Leon Cupra. This can be tuned to improve the stock calibration for faster gear changes, a raised torque limiter, better launch control performance and full manual mode using the paddles which disables kickdown. More transmission tuning options are available for the more popular 280, 290 and 300 models.

For the six-speed manual transmission it can be tuned to handle a Stage 1 remap but this is generally the limit for the stock clutch. If you’re looking to up the power it’s advisable to invest in an upgraded clutch. Sachs clutches are generally used for the Leon Cupra and an organic plate can be used for torque up to 500Nm and sintered for up to 600Nm.

If you plan to frequent the track it’s well worth looking into switching up the diff too. The Leon Cupra comes with a mechanical diff but a limited slip differential will help to improve power delivery. The Wavetrac diff doesn’t lose drive when an axle is unloaded, instead the system can favor the wheel that does have grip to even out power and make the car more predictable. This is particularly important when cornering, especially if firmer suspension results in more three-wheeling than four.

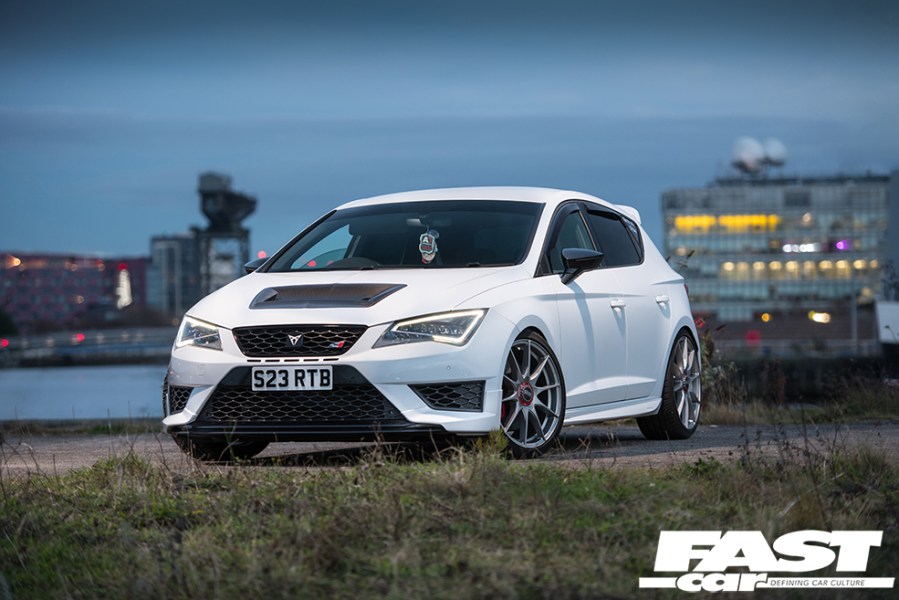

Tuned SEAT Leon Cupra

Suspension tuning

To capture the perfect wheel-in-the-air moments on the track, tweaking the stock suspension is a must. Lowering springs from suppliers like H&R can drop the car by 35mm, opt for Bilstein B14s and ride height can be dropped up to 50mm. It’s also a good idea to fit a front strut brace, another component under the bonnet that can be carbon fiber or virtually any color you want. The brace will reduce chassis flex and improve suspension characteristics over twists and turns on the track.

Similarly, a K-brace fitted between the rear wheel arches will improve torsional rigidity at the back. For on road driving, a strut brace and K-brace aren’t essential for performance. If the Leon Cupra will be your everyday driver then the K-brace takes up some trunk space and makes it difficult to get long items in with the seats folded down. So, if practicality and good handling are key then a front strut brace might be a good solution to start with.

Tuned SEAT Leon Cupra


If your Leon Cupra build is destined to hit the track, brake upgrades are a must. Tarox offers F2000 discs and Sport Japan variants that pair with its Corsa pads to create a robust brake setup. The discs have better ventilation than stock discs which will dissipate heat more quickly. The Sport Japan version is also said to vent gasses which can cause brake fade.

Companies like RacingLine sell brake disc and pad packages that are suited to the extra power output of Stage 2 remaps. Make sure to research which brakes will pair well with your engine mods. If you weren’t already planning on it, getting an accurate dyno testing done will ensure you’re able to find the right set of brakes to match the vehicle. Package brake kits generally come with new brake hoses too but if not, add this to the list when it’s time to upgrade.

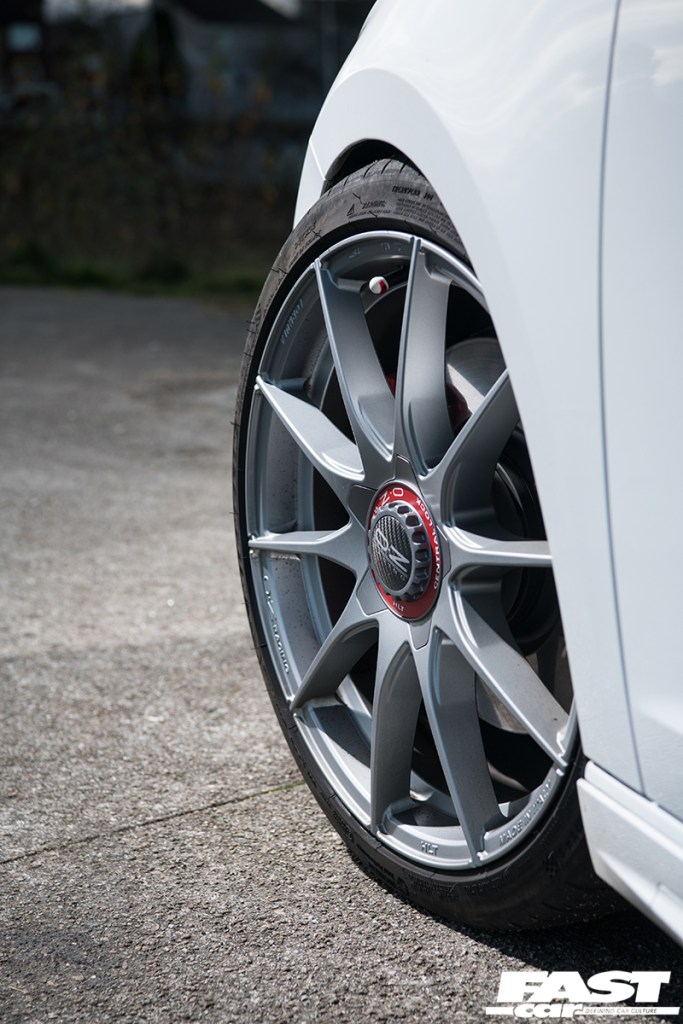

detailed wheel shot


Nearly all Leon Cupras of this generation are fitted with 19-inch wheels. The early 265 model sits on 18-inch rims. If you’re looking for a subtle on brand wheel upgrade, consider finding a set of Sub8 edition racing wheels but there’s plenty of aftermarket options too.

For this tuned 290 the owner fitted two-piece BBS split wheels and then switched them out for OZ Racing Formula HLT wheels. As the Leon Cupra sits on the Volkswagen group’s MQB platform you’re spoilt for choice. MAM, Keskin, RacingLine, Romac, Axxion and countless other brands offer 19-inch rims suitable for the Mk3 so it’s all down to your personal preference. And, because there’s so many brands and cars these can sit on, the second hand market should have a healthy supply too so if brand new rims are a stretch too far, start searching.

When it comes to tires, again this is down to preference and budget but all the major tire makers have good performance options. These include the Bridgestone Potenza, Continental Sport Contact, Pirelli P Zero and Michelin Pilot Sport.

Tuned SEAT Leon Cupra

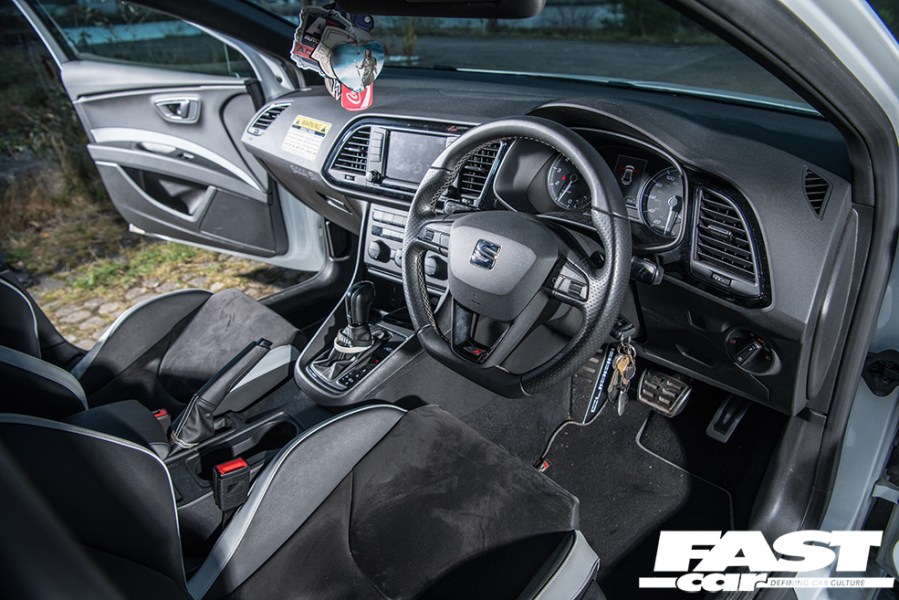

Don’t overlook your interior mods. Admittedly the power-creating modifications are the most important ones but it’s nice to have some personal touches inside. The front seats come with quite large bolsters so if these are looking a bit tatty it might be time to upgrade. There’s a good range of bucket and reclining seats from brands like Recaro, Sabelt and Sparco as well as various harness solutions to go with them. Depending on which seat you go for, the bracket it sits on will likely need swapping out for one that fits correctly with the new chair.

For you carbon fiber lovers there’s loads of replacement trim parts for around the gear shift and the climate control panel. Half and full roll cages are available and the half cage isn’t too invasive so the car retains some everyday practicality.

One of the most impactful ways to modify your interior is to upgrade the ambient lighting situation. There’s various different options for this, all with varying degrees of effectiveness. The basic solution is to stick colored overlays onto the existing interior lights. Obviously this means you’re limited to the color that’s on the top. Additional LED strips can be fitted but these don’t have great integration with the car. Places like East Yorkshire Retrofit Solutions can fit footwell lighting and enable 30 colors controllable through the infotainment screen on cars with existing RGB ambient lighting.

Tuned mk3 Leon in the dark


You might already have the vision in mind but if you’re looking for inspiration here’s a few additions to consider. Depending on how aggressive the aerokit needs to be there’s plenty of body kits with front and rear bumpers, side skirts, front and rear diffusers and spoilers. Various carbon fiber, matte or gloss black versions are available and some have red accents too for a sportier look.

Subtler styling can be added with tinted headlights and graphics on the rear window behind the back door. As always make sure to check the legality around tinted lights in your State or country and test the effectiveness of your lights at night before venturing out with them for the first time. Graphics on the rear window are a good way to add a bit of personality to the build and some places offer customisation too so you can point people in the direction of the car’s social media pages.

The Leon Cupra R got copper accents so if you’re after the same vibe badges and fog light surrounds can be fitted for a pop of color. Given the spoiler position there aren’t many huge wing mods done with the Leon Cupra but if you’re going for a Stage 3 map and turning it into a track weapon then a wing can be fitted with an external bracket that comes down over the back window.

Need help sourcing a car for your project? Have a read of our SEAT Leon Cupra Mk3 buyer’s guide.
