Want to know why you should remap your car? Or what even goes into ECU remapping? Well, you’re in the right place to learn about an important step in car tuning.
Cars are complicated, and without fettling the electronics controlling all their systems you won’t be making the most out of any of the modifications you’ve made. Now, we’re the first to understand that it’s hard to justify shelling out for something you can’t actually see, but trust us, ECU remapping is worth it.
Getting a remap is nothing like spending a few quid on a swanky new exhaust that you can annoy the neighbors with. The point is though, getting all those electronically controlled settings spot on is essential. Not just for wringing out more power, but for the general wellbeing of your engine. It all becomes obvious when you get in and drive.
ECU Remapping Guide
What Is An ECU?
All electronic ignition cars (that’s all ones that don’t have an old-school carburetor) use an ECU or Engine Control Unit. This is a computer that constantly reads and evaluates information fed to it by various sensors located around the car. It analyses factors such as engine load, throttle angle, air density, exhaust gases, air, fuel and coolant temperatures, then compares it to a factory preset map. The ECU can then effectively control engine operation and efficiency by adjusting timing, air/fuel mixture, injectors and, on turbo cars, the all-important boost pressure.
For a more in-depth look at what an ECU is, and how they work, read this other handy guide.
Why Would You Remap An ECU?
Manufacturers have to make big compromises when programming their ECUs. Think about it – they don’t know you’re a proper car nut do they. They don’t know you only use the very finest fuel, follow the correct cold start/cool down procedure and service your car regularly. Many ordinary motorists don’t, so manufacturers engineer their standard lumps to endure a bit of mistreatment. In fact, most are put together to perform at way below their potential. They’re basically detuned to increase reliability when neglected and increase fuel economy. Some will also heavily detune their engines to create lower-spec models and meet insurance or economy regulations.
Luckily, the ECU controls pretty much all of this stuff and, if you stick in a new set of parameters changing the preset map, you can iron out these compromises.
Where Does The New Map Come From?
It takes years of research and development to tune any car to its full potential. Creating an engine map is a technical business because they have to be bespoke for every make, model engine size and configuration.
Then there are the aftermarket stages: a stage one map is often designed to complement, say, a panel filter and exhaust. Stage two could be for further mods such as a front mount intercooler and tubular manifold. And stage three for a bigger turbo, injectors and fuel pump. In other words, they’re designed to make the most of all those other mods too.

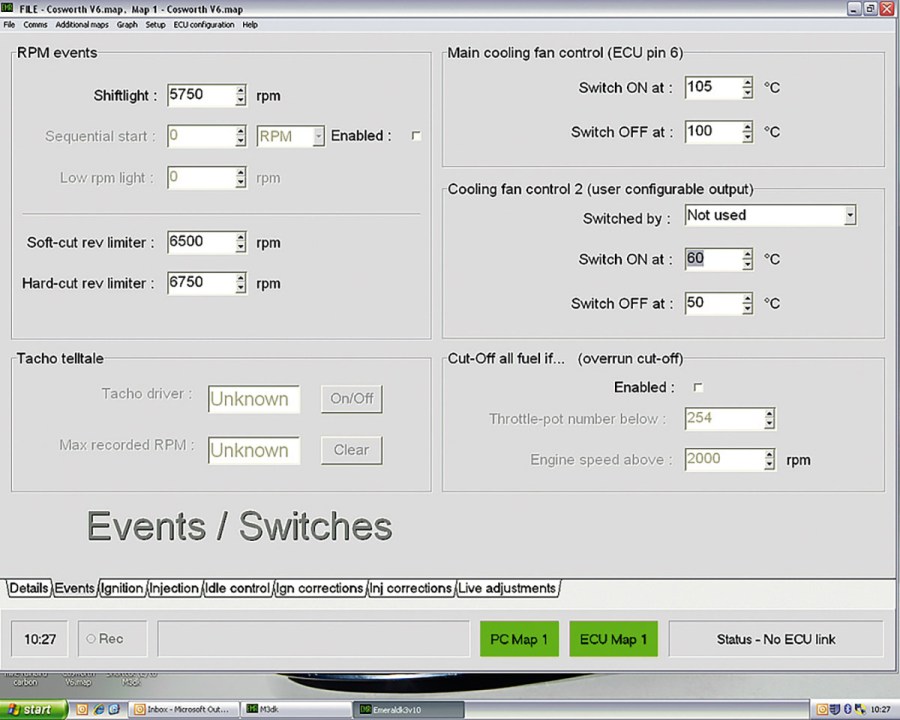

The software is a complicated mash of fueling, ignition timing, boost and loads of other figures. But it’s tweaked and developed to increase power and drivability (and sometimes economy) without pushing the engine’s safety parameters too far. This is where your money goes!
Most important though is making sure you use the best possible, tried and tested technology. Always do your research, aim for the highest quality brand and, even more importantly, an installer with experience. You wouldn’t let Average Joe upgrade your laptop’s RAM to save a few quid, would you? It’s the same thing here.
How Is The Remap Uploaded?
So that’s the map. But how does an installer get it into your car? Well, they can achieve this in one of two ways.

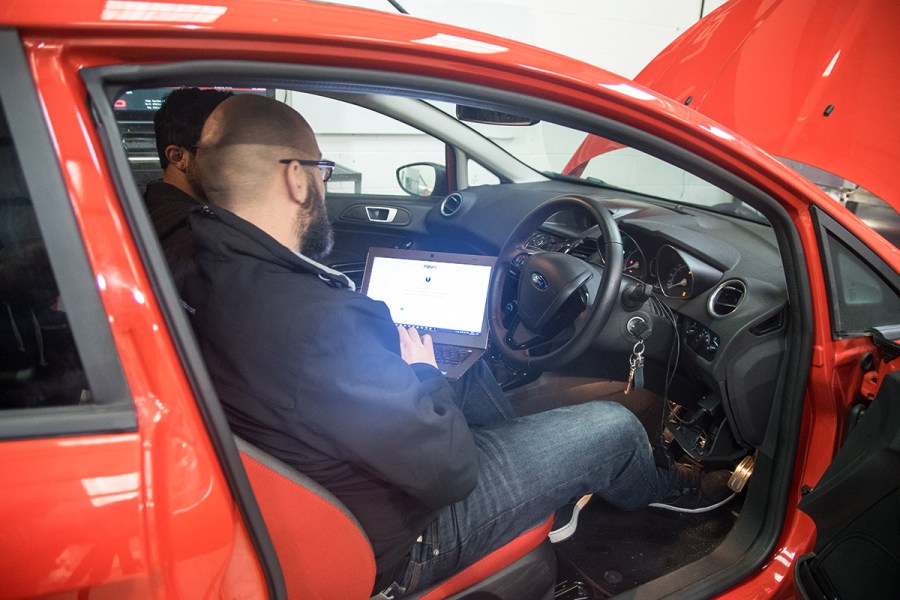

Nowadays OBDII Port mapping is by far the most common way and simply involves uploading the new software through the car’s OBDII port. This is a direct connection to the ECU normally used for diagnostics, and as a result, changing the map becomes a simple plug and play job, achievable in a matter of minutes.
What Is Chip Tuning?

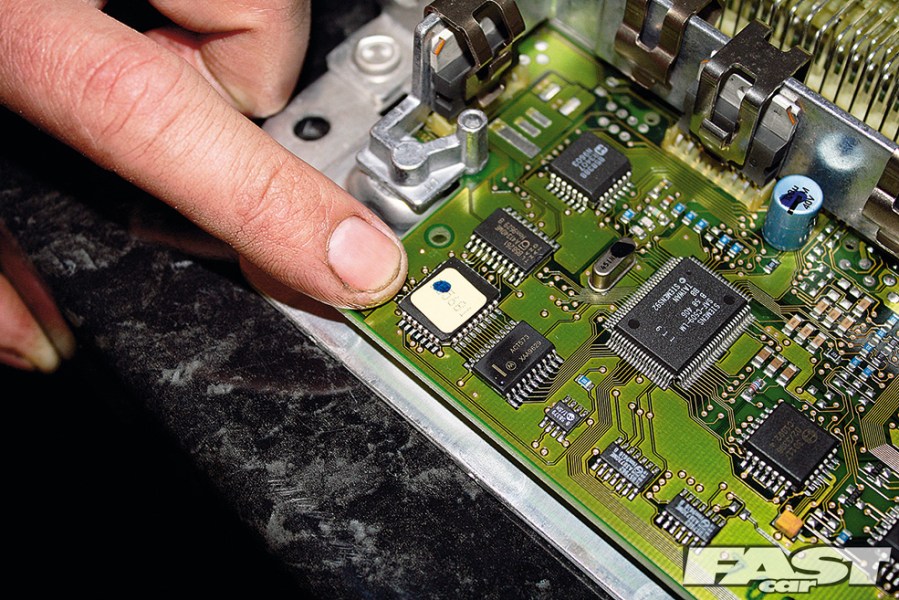

For cars that aren’t OBDII compliant, tuners have to physically remove the ECU, open it up and solder a new microchip onto the motherboard, a bit like upgrading an early 1990s PC. We normally associate chipping with really old cars but it’s worth remembering it could be any car manufactured before 2001. If a 2000-model Golf 1.8T has a diagnostic port it doesn’t necessarily mean it will be programmable through it.
Can You Remap A Diesel?
Well, no need for a sad face, because oil burners love being remapped the most. In many ways, diesels respond to ECU remapping better than petrol motors and, with the right stage pack, you can up the power by up to 40 percent. Bonkers!
What Is Live Mapping?
You want the very best? Well, it’s gonna have to be a live map – the most accurate method to re-work those engine parameters. This involves hooking up a laptop to the ECU and going for a drive or hitting the rolling road. This way a tuner can maximize performance far more effectively for any individual car, no matter what the spec. Obviously this is a favorite with big-powered monsters and racecars, and also useful in diagnosing any problems there may be.

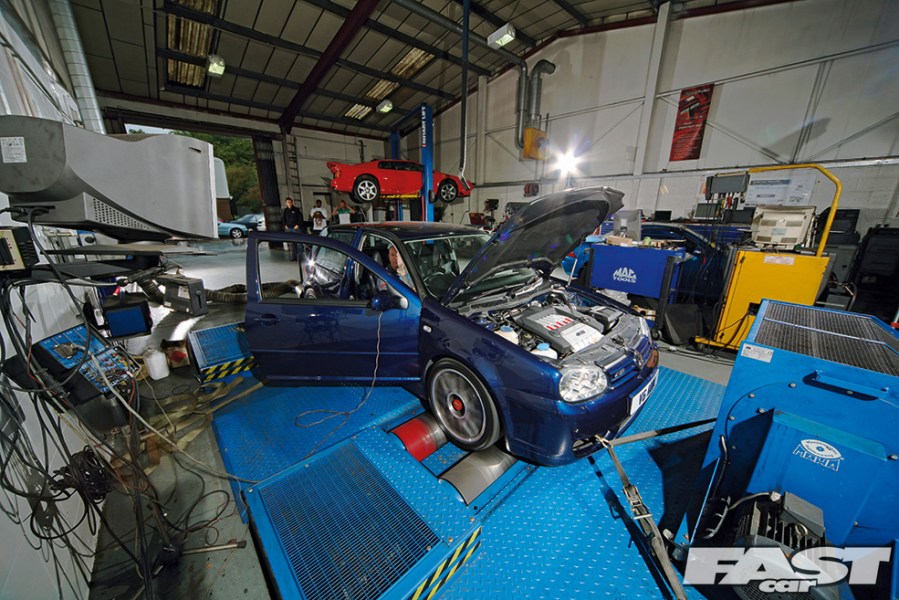

Why Use A Rolling Road?

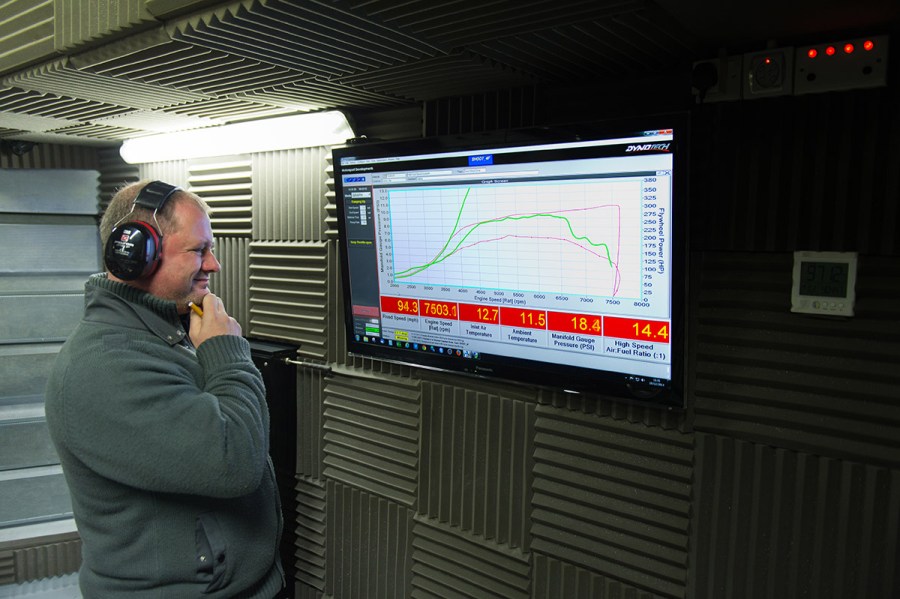

Of course, the advantage of using a specialist with a dyno is you can actually see what difference your new map is making with each power run. You can also get an indication of any power problems across the rev range and address them accordingly. For optimum tuning, not to mention proving the figures to your grandad, it’s essential!
What Is The Future Of ECU Remapping?
Of course, it’s all very well if you can get your car to a workshop for an expert remap, but what if that’s not possible? Fear not, the solution is simple – nowadays you can buy an OBDII cable and do the job yourself. Some tuners have in-house developed stage one, two and three maps available for most cars, which they can send you via the internet.
All you need to do is plug it in, upload and away you go. You can also log engine data on the road or local dyno and send it over for them to diagnose and tweak. You can remap your car to suit every time you make upgrades.
More recently, Bluetooth technology has allowed for the control of maps via smartphone and an OBD2 Bluetooth adapter plug. Clever stuff indeed!
Electric cars are increasingly commonplace, and as you might imagine, are almost entirely governed by their ECUs. So, theoretically, the potential for performance gains from remapping EVs is even greater than with ICE cars! At the moment, it’s still early days for this new industry, but we have already heard of Tesla tuners being able to use plug and play methods to unlock an extra 150hp! Check out our EV tuning guide for more.
