JRM Nissan GT-R Nismo GT3

JRM Nissan GT-R Nismo GT3

Posted by Glenn Rowswell on 9th January 2014

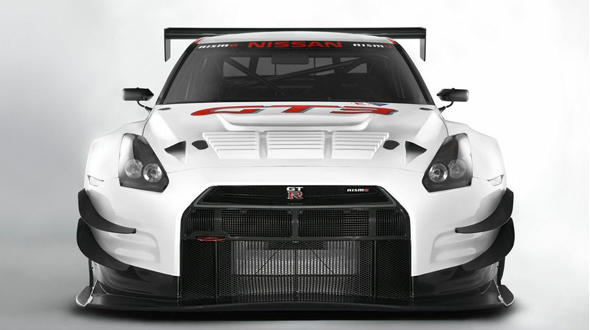

JRM Nissan GT-R Nismo GT3
JRM, has just unveiled its 2014 Nissan GT-R Nismo GT3 car at the Autosport International Show at Birmingham NEC.

The new machine is an evolution of the successful 2013-specification GT-R that won the PRO-AM drivers’ and teams’ championship titles in the fiercely-competitive Blancpain Endurance Series last season.

It complies with the FIA’s GT3 regulations and is therefore eligible for most of the international and domestic sports car championships around the world.
JRM Nissan GT-R Nismo GT3
JRM, assigned by Nissan Motorsports International (NISMO) to assist in the development, test and build programmes for the Japanese marque’s official GT3 programme in 2011, has delivered a raft of performance-enhancing developments with the 2014-specification GT-R.

The 3.8-litre, V6, twin turbocharged car features new hubs and wheel locking nuts that improve pit stop times by five seconds, Rays wheels to suit the latest hubs, a re-located air jack point on the front wing to ease pit stop efficiency, a front radiator blanking kit, and a redesigned fuel delivery system that improves pit stop filling times by four per cent.

For more info check out the JRM website

2014 Nissan GT-R Nismo GT3 technical specification

Engine
Nissan VR38DETT: 3.8-litre, V6, twin-turbo
Maximum power output: more than 550 bhp @ 6,400 rpm
Maximum torque output: 650+ nm @ 4,000 rpm
Side-exit exhaust system with optional catalytic converter

Transmission
Hewland 6-speed sequential gearbox semi-automatic pneumatic paddle shift system Endurance specification crown wheel and pinion
Endurance specification lightweight CFRP prop-shaft
Endurance specification lightweight driveshafts
Sachs 4-plate sintered clutch assembly

Chassis
Target homologated weight: 1300 kg
FIA welded safety cage 130-litre, ATL FT3 fuel tank with a CFRP cell
Dual ‘quick-fill’ refueling system
Fitted air jacks

Bodywork
Carbon-composite body panels
Carbon-composite doors
Polycarbonate door, side and rear windows
Polycarbonate windscreen with hard coating
Wind tunnel developed front splitter, bumper and flat floor
Adjustable rear wing assembly

Suspension
Öhlins TTX dampers with four-way adjustment
Front and rear adjustable blade anti-roll bars

Brakes
Brembo 6-piston long distance front calipers
Bosch motorsport M4, driver adjustable, ABS controller
Front to rear brake bias, driver adjustable
Front and rear brake cooling ducts

Wheels
RAYS centre-lock, aluminium forged
18” x 13” front and rear

Electrical
Pectel SQ6M engine control unit featuring:
Semi-automatic gearbox control
Driver adjustable traction control
Drive-by-wire throttle control and ‘auto blip’
Bosch motorsport M4 ABS system

Interior
Sparco HANS seat
NISMO 5-point harness
‘Quick’ adjustable seat and steering wheel position
Lifeline lightweight – re extinguisher system

Data display system
Motec ADL 3 dash logger (back-lit)
Multi-function shift light module

Optional equipment
Driver Cooling: NISMO air conditioned ‘cool seat’ system
GPS receiver and lap beacon
Comprehensive sensor pack including damper potentiometers
Tyre pressure monitoring system
